Ekran 2.13 inča, za Raspberry Pi (e-ink displej 2.13”), 250 × 122, hat

1,990.00 RSD (Sa PDV-om)

Opis

SKU: 12915
Part Number: 2.13inch e-Paper HAT
Brand: Waveshare

250×122, 2.13inch E-Ink display HAT for Raspberry Pi, SPI interface

Overview

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250×122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

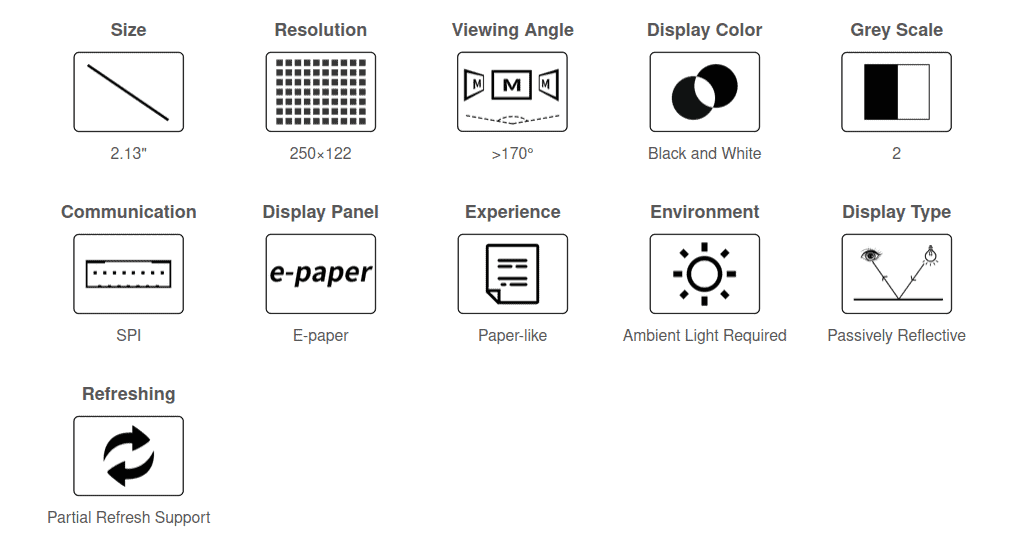

Specifications

  • Operating voltage: 3.3V/5V
  • Interface: SPI
  • Outline dimension: 65mm × 30.2mm
  • Display size: 23.71mm × 48.55mm
  • Dot pitch: 0.194 × 0.194
  • Resolution: 250 × 122
  • Display color: black, white
  • Grey level: 2
  • Partial refresh time: 0.3s
  • Full refresh time: 2s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Link proizvođača

Link Waveshare Wiki



Package Content

Weight: 0.014 kg

  1. 2.13inch e-Paper HAT x1
  2. RPi screws pack (2pcs) x1
  3. PH2.0 20cm 8Pin x1
1
2
3



Deklaracija

Šifra: w12915
Naziv: Ekran 2.13 inča, za Raspberry Pi (e-ink displej 2.13”), 250 × 122, hat
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013
