Ekran 2.9 inča, za Raspberry Pi (e-ink displej 2.9”), 296 x 128, fleksibilni

3,090.00 RSD (Sa PDV-om)

Na zalihama

Šifra proizvoda: w16565 Kategorija: Oznaka:


SKU: 16565
Part Number: 2.9inch e-Paper HAT (D)
Brand: Waveshare

296×128, 2.9inch flexible E-Ink display HAT for Raspberry Pi, black/white dual-color, SPI interface


This is a flexible E-Ink display HAT for Raspberry Pi, 2.9inch, 296×128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Compared with normal e-Paper panels, this flexible panel allows bending without being damaged, and it’s thinner and lighter.

Combined with the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications where curved surface display is required, such as industrial instruments, smart wearable-devices, and so on.


  • Flexible e-Paper, the display section is bendable (DON’T bend the FPC section)
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

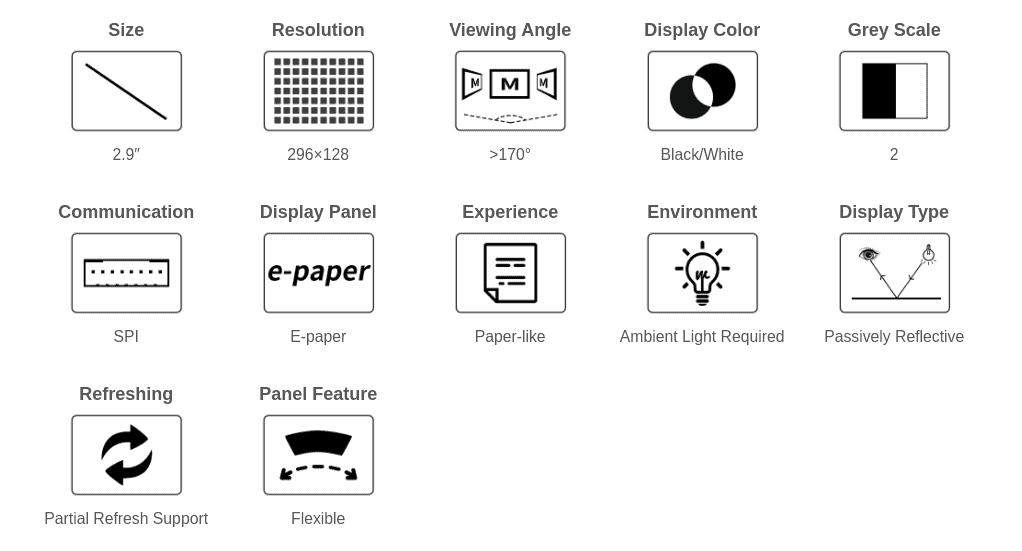

  • Operating voltage: 3.3V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 79mm × 36.7mm × 0.34mm
  • Display size: 66.9mm × 29.06mm
  • Dot pitch: 0.227 × 0.226
  • Resolution: 296 × 128
  • Display color: black, white
  • Grey level: 2
  • Full refresh time: 2s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Link proizvođača

Link Waveshare Wiki


Package Content

Weight: 0.026 kg

  1. 2.9inch e-Paper (D) x1
  2. e-Paper Driver HAT x1
  3. RPi screws pack (2pcs) x1
  4. PH2.0 20cm 8Pin x1


Šifra: w16565
Naziv: Ekran 2.9 inča, za Raspberry Pi (e-ink displej 2.9”), 296 x 128, fleksibilni
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
Telefon: 061-640-2013
