POE (Power over Ethernet) HAT (C) za Raspberry Pi 3B+/4B i 802.3af + ventilator

2,590.00 RSD (Sa PDV-om)

Nema na stanju

Šifra proizvoda: w19445 Kategorija: Oznaka: Težina proizvoda: 77 g

Opis

SKU: 19445
Part Number: PoE HAT (C)

Power Over Ethernet HAT (Type C) For Raspberry Pi 3B+/4B, 802.3af/at Power-Sourcing Equipment Required
POE HAT FOR RASPBERRY PI

Power Over Ethernet HAT For Raspberry Pi 3B+/4B, 802.3af/at-Compliant
(Any Backward-Compatible Future Versions Will Be Supported As Well)

12V and 5V power outputs to support more peripherals

Features At A Glance

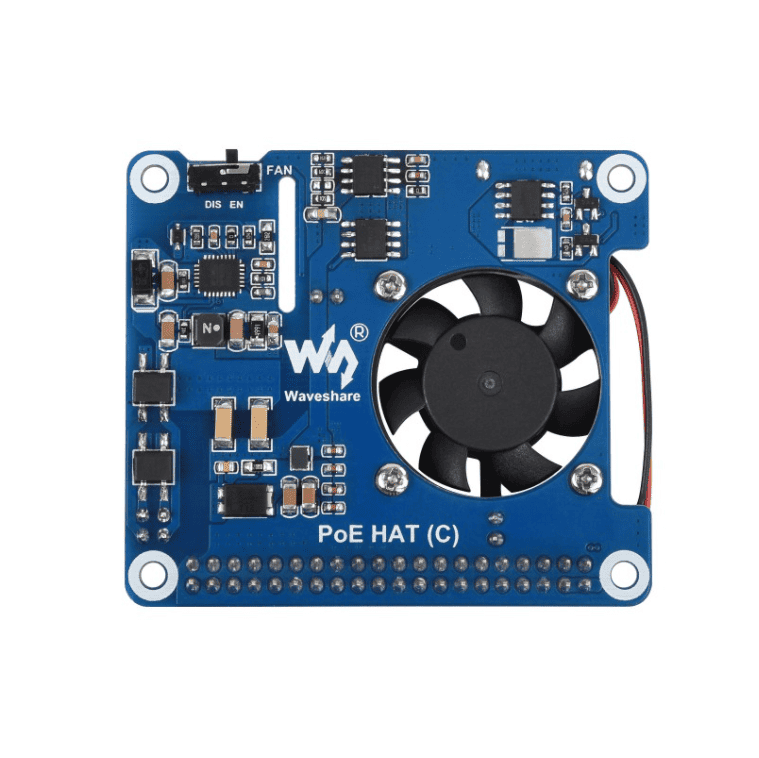

The PoE HAT (C) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 3B+/4B. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

  • Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 3B+/4B
  • PoE (Power Over Ethernet) capability,IEEE 802.3af/at-compliant
  • Fully isolated switched-mode power supply (SMPS)
  • While providing stable power for the Raspberry Pi, there’s also a USB-A port for powering extra external device
  • Onboard high speed active cooling fan, better heat dissipation
Specifications
POE POWER INPUT 37V ~ 57V DC in
POWER OUTPUT USB-A: 5V 4A (MAX)
2P header: 12V 2A (MAX)
NETWORK STANDARD IEEE 802.3af/at PoE
DIMENSIONS 56.5 × 65mm
For Use With Raspberry Pi 3B+/4B

Standard Raspberry Pi 40PIN GPIO Stackable Header, Allows Connecting Other HATs

Power Over Ethernet

Providing Both Network Connection And Power Supply For Your Raspberry Pi In One Cable

Raspberry Pi or PoE equipment is NOT included.
5V USB-A & 12V Header Outputs

5V USB-A Provides Up To 4A Output (MAX 25W For 12V+5V Total Output Power)
Be Able To Power Extra Device While Providing Stable Power To Raspberry Pi

Active Cooling Fan

Onboard MP8676 Buck Chip

Incorporates Original Voltage Buck Chip
Providing Up To 4.5A Output For Raspberry Pi And USB-A Port

Outline Dimensions

Resources & Services


PACKAGE CONTENT

Weight: 0.055 kg

  1. PoE HAT (C) x1
  2. Heatsink x1
  3. Standoffs pack x1

Dodatne informacije

Težina 77 g

Deklaracija

Šifra: w19445
Naziv: POE za Raspberry Pi (C)
Vrsta: Waveshare
Zemlja porekla: Kina
Zemlja uvoza: Kina
Uvoznik: MALINA 314 doo, Beograd
